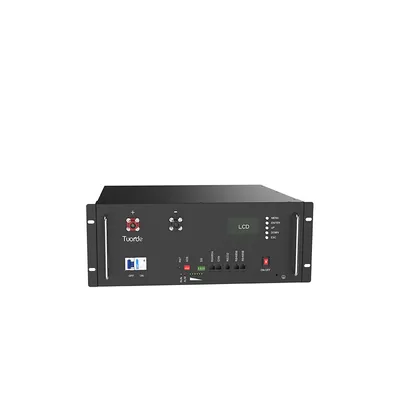

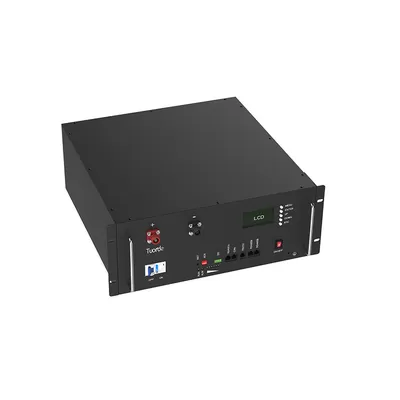

BMS Rack Mount Lifepo4 Battery 51.2V 200Ah Lifepo4 Lithium Battery

Place of Origin: China
Brand Name: Tuorde
Certification: CE,UN38.3,TUV mark
Model Number: RD-LR48200A

Model No.:TRD-LR48200
Nominal Voltage(V):48/51.2
Nominal Capacity(Ah):200
Energy(Wh):9600/10240
Dimension(mm):L442xW580xH220
Weight(Kg):88/92
Discharge Cut-off Voltage(V):40.5(15S)/43.2(16S)
Charge Cut-off Voltage(V):54.7(15S)/58.4(16S)
Communication Port:R5485,R5232 CAN
Cell serial numbert:15S/16S
Working Temperature:-10°C~60°C
Design life：10+Years (25°C/77°F)
Cycle Life“”>6000,25°C/77°F,80%DOD
Certification：CE/UN38.3
Maximum continuous charge current：100A
Maximum continuous discharge current ：100A
