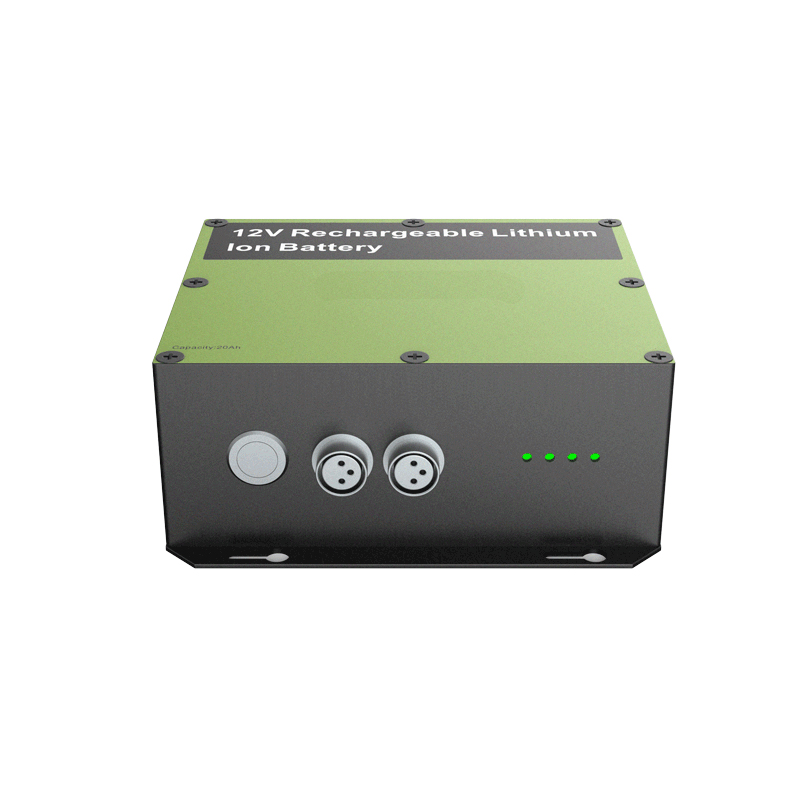

12V 20Ah Low Temperature LiFePO4 Battery for Special Equipment

Nominal voltage：DC12V stable voltage output
Nominal capacity：20Ah
Charging voltage: DC input 12V
Charging current: ≤2A
Discharging current: 3A
Instant discharging current: 10A
End-off voltage: 4V
Internal resistance: ≤120mΩ
Battery weight: 2500g including housing
Product dimension: 180*175*70mm
Charging temperature：-20～4
Discharging temperature: -40～55 ℃

Product features

1. Communication function: smbus communication protocol; monitor the voltage, current, capacity, temperature of the battery.

2. Fast connection: adopt push-pull self-locking aviation connector, which is fast, safe and reliable.

3. Charge: can charge at -20℃ to meet the requirements of field charging.

4. The battery pack has good security, nice low-temperature performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

6. Shockproof and waterproof: meet the requirements of good security and super reliable by aluminium alloy housing shockproof structure design.

Battery case: aluminium alloy housing

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection and Smbus communication protocol, etc.

Application field: wide application, field emergency power supply, tank tablet battery, special device detector, etc.
