Place of Origin: China
Brand Name: Tuorde
Certification: CE,UN38.3

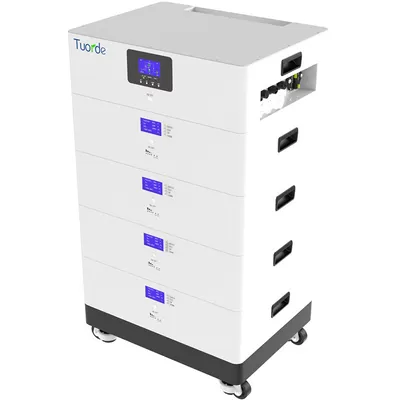

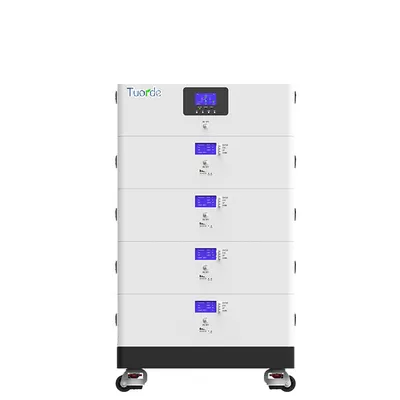

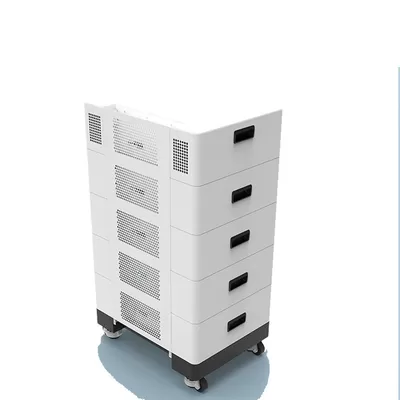

Model Number: Stackable energy storage system
MPPT votage range 60-115Vdc
Maximum PV input current:50A
Input voltage range (90Vac-280Vac)±2%
Conversion time:10ms
Maximum efficiency >95%
Maximum bypass overload current:40A
Output voltage waveform:Pure sine wave
Rated output power:5000W
Rated Output Voltage (VAC):230Vac
Output frequency range (Hz):50Hz±0.3Hz/60Hz±0.3Hz
Maximum efficiency >92%
battery capacity:200Ah,300Ah,400Ah
Dimension (WxDxH mm):600x460x637mm/600x460x817mm/500x460x997mm
Maximum continuous working current:100A
Protect:BMS
Discharge voltage:46V
Battery cycle life:6000
