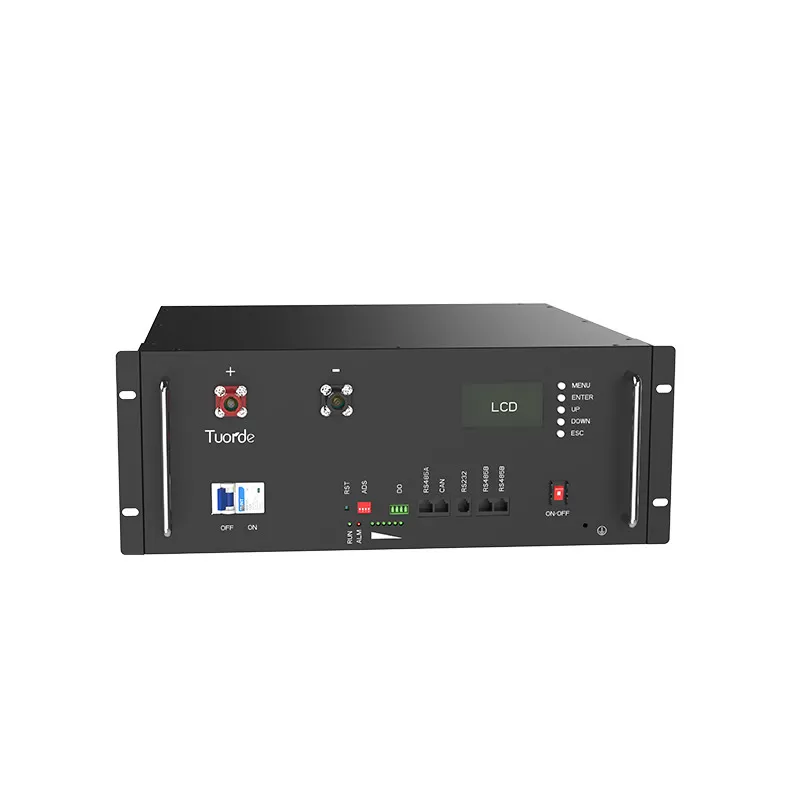

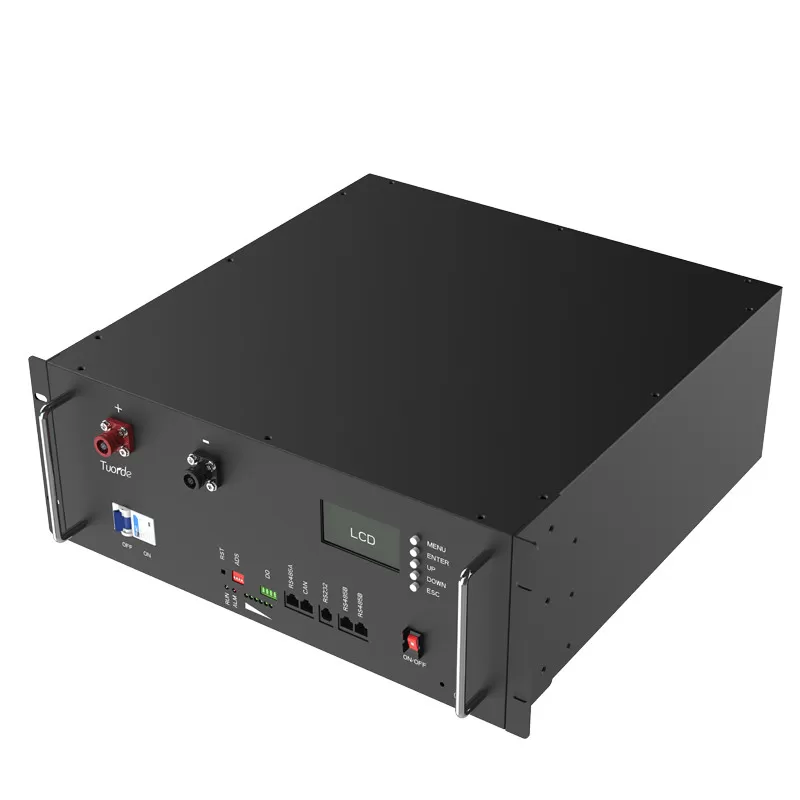

Rack Mounted ESS Battery Storage Lithium Iron Phosphate Drop In Lead Acid Replacement

Place of Origin: China
Brand Name: Tuorde
Certification: CE/UN38.3
Model Number: TRD-LR48200A

Model No.：TRD-LR48200
Nominal Voltage(V)：48/51.2
Nominal Capacity(Ah):200
Energy(Wh):9600/10240
Dimension(mm):L442xW580xH220
Weight(Kg):88/92
Discharge Cut-off Voltage(V):40.5(15S)/43.2(16S)
Charge Cut-off Voltage(V):54.7(15S)/58.4(16S)
Communication Port:R5485,R5232 CAN
Cell serial numbert:15S/16S
Working Temperature:-10°C~60°C
Design life:10+Years (25°C/77°F)
Cycle Life >6000,25°C/77°F,80%DOD
Certification:CE/UN38.3
Maximum continuous charge current:100A
Maximum continuous discharge current :100A
